RT CONNECT - RTCM Correction Modem

	Product Datasheet

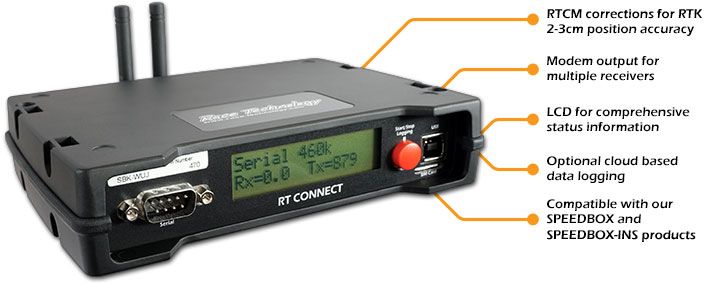

The RT CONNECT is a 4G LTE radio modem which provides RTCM correction information to either Race Technology SPEEDBOX products or to other RTK enabled GNSS receivers which require RTCM format corrections to provide 2cm positioning.

Corrections can be sourced either from a Race Technology base station, or from a subscription. Full status information for the connection and satellite information is shown on the LCD.

Using the RT CONNECT with the SPEEDBOX-INS or CATS-INS gives all the benefit of the proven speed and attitude accuracy of the SPEEDBOX-INS, with the addition of positional accuracy upgraded from the 1m level to the 2-3cm level. This brings many more applications within the remit of the SPEEDBOX-INS / CATS system, including:

• Driving robot input
• Lane deviation testing
• Target tracking
• Driver assistance development and end-of-line testing (ADAS)
• Driverless vehicle research and development

The RT CONNECT uses the same stacking design as the DL2 and SPEEDBOX for neat installation.

There are ongoing charges for the RT CONNECT, they are provided as an all inclusive package, with the first year being free. Extensions to this subscription can be charged either annually or five yearly. SIM cards are user supplied.
