RT LIVE Motorsport - Options

GPS Positional Accuracy Options:

For the RT LIVE there are a range of positional accuracy options. In basic terms the standard positional accuracy is optimised and idea for the typical user. The 20Hz option achieves noticeable improvements with upgraded receivers without adding any additional user complexity or setup to the systems, as such this is a worthwhile upgrade to users serious about data and accuracy. The RTK Differential options require additional hardware and ongoing correction subscription charges, or an RTK BASE basestation as a correction source. These ultimate positional accuracy options are aimed at organisations who require ultimate accuracy and consistent repeatability between multiple vehicles/races/sessions/seasons. This could be used for example to enforce track limits rules, or for numerous automotive testing applications.

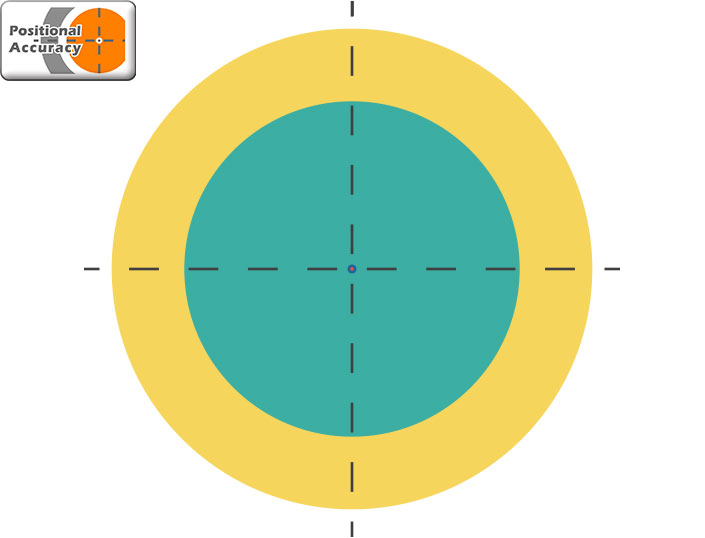

GPS Type
 50% CEP Error [cm]
 99% CEP Error [cm]
10Hz - GPS/GLONASS
 43 164
20Hz - GPS/GLONASS/Galileo/BeiDou
 30 116
RTK Differential - Dual Frequency + Commercial Corrections *
 0.8 3
RTK Differential - Dual Frequency + RT Basestation 10km away * **
 0.3 1.3
All tests are based on 24 hours continuous data collection with a good view of the sky
All products must be newer than 2022 for standard specification receivers, optional recievers must be specified at time of ordering
*Optional receiver on this product
**Typical differential corrections are valid up to about 50km from the base station, and then start to degrade. Corrections are still useable/beneficial up to about 150km





CAN Communication

CAN reception (15 channel license):
With this option the unit can decode any CAN data from either the vehicles main CAN stream or CAN based aftermarket ECU. This data can be mapped to any RT channels for saving or sending to serial port. Up to 105 CAN receive channels per unit, in multiples of 15 (one £100 licence gets you 15 channels). Messages loadable using .dbc files. Data rates of up to 1Mbit and 11 or 29 bit addressing. For more information visit our knowledgebase here


RAW CAN reception

Receive and log the vehicle's entire CAN bus data, irrespective of whether it is 11 bit or 29 bit address. Decode it in the Analysis software using DBC files. No need to pre-configure the data logger, just log and decode easily in the software. Perfect for reverse engineering CAN data and using on multiple vehicles. If used with the 1000Hz logging option it can log raw CAN at up to 1000Hz.

QuickSync - Automatic GoPro Video and RT Data Synchronisation

Synchronised Race Technology data with automatically synchronised GoPro video. QuickSync software licence enables HD video by data analysis, and data overlaid video exports from the Analysis software. QuickSync technology uses GPS data from GoPro and Race Technology data files to automatically align data. For further information click here. *GoPro camera not included.
