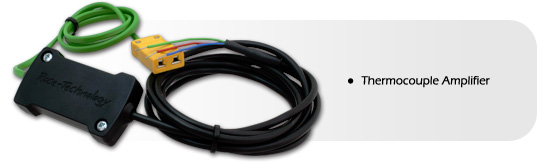

Basket (0) Thermocouple Amplifier
Description
A very high quality thermocouple amplifier designed and built by us specifically for auto sport applications. The amplifier comes in 2 temperature ranges and is suitable for many applications including exhaust gas temperature measurement. It requires a 5V supply (obtained directly from the DL1 or DL2). There is a standard miniature k-type thermocouple connector one end, and a flying lead to connect directly to the logger on the other end. There are two versions of the amplifier available, for either -100°C to 210°C or -100°C to 1150°C (for exhaust temperature measurements). The output voltage is 0-5V in either case. Typical accuracy is 2°C +/-1% of reading.
Technical Data
| Supply voltage | 5V +/-5% |
| Output voltage | 0-5V |
| Current consumption | 5 mA |
| Operating temperature range | 0-70°C |
| Typical accuracy | ±1% of reading +2°C |
| Temperature range | -100 - 1150°C (4mV/°C, 0.4V @ 0°C) -100 - 210°C (16mV/°C, 1.6V @ 0°C) |
| Input connector | Miniature k-type |
| Thermocouple | Standard k-type |
| Output connector | Wire ended flying lead |
| Output cable length | 2m (other lengths available on request) |
For further information on thermocouples and their calibration please visit our Knowledge Base here
