DASH4 PRO Options:

Cable choice:

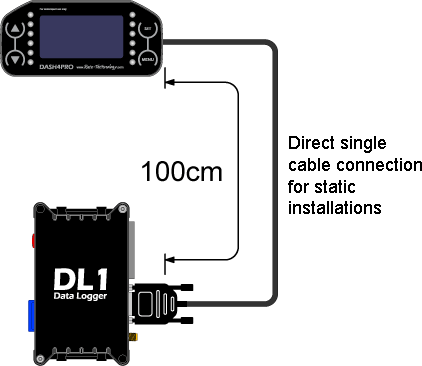

Standard

Simple straight cable for static mounting.

https://www.race-technology.com/upload/products/NewImages/new%20products/dash4pro2_cable_std.gif

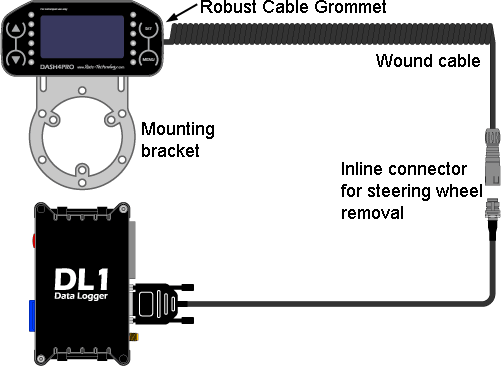

Optional steering wheel mounting kit

Complete with curly cable, quick release connector and steering wheel mounting bracket.

https://www.race-technology.com/upload/products/NewImages/new%20products/dash4pro2_cable_stwheel.gif

The DASH4PRO steering wheel mounting kit is designed to fit within most popular sizes of wheel, to check the fit of the unit a scale drawing is available here.
A new accessory for 2015 is the: Mounting boss - ¼" UNC threaded boss designed to fit suction mounts and other popular mounting systems e.g. RAM mounts.



Direct CAN input

The additional direct CAN receive option allows the DASh4PRO to be used as a very flexible CAN display. The CAN input can be configured with a DBC file, and decoded CAN data can be displayed on the screen, or used to control the high brightness LEDs. In addition the menus also allow raw CAN data to be displayed which is very useful for checking the CAN data is present and connected up correctly.


USB programming lead

If  the DASH4PRO is connected to a data logger, the it can be configured either by putting a DASH4PRO configuration file on the data loggers memory card, or from the PC connecting to the data logger.
If the DASH4PRO is used without a datalogger, then it needs to be configured with our optional USB Programming lead. This connects to the PC’s USB port and supplies power and a data connection suitable for configuration and reflashing of the DASH4PRO display.
